Description
ANNKE H500 5MP PoE Dome Security Camera System with 6MP NVR
NVR Features:
· 6MP high definition Real-time live viewing
· 6MP recording&playback
· 8 built-in PoE inputs
· Advanced H.265+ Video Compression
· Supports iPhone、iPad、Android mobile remote monitoring
Camera Features:
★ 5MP IR Network Dome Camera with audio input
★ 2.8mm lens brings everything back to life
★ Efficient H.265+ compression technology
★ Built-in microphone for real-time audio security
★ Up to 100ft night vision with EXIR 2.0
★ Clear day and night vision with 3D DNR and 120DB WDR
★ IP67 Dust and Waterproof Rating
★ Support PoE (Power over Ethernet)&DC12V
If you choose 2pcs cameras,you will get:
X1 NVR
X2 Cameras
X1 Power cable
X1 USB mouse
X1 User manual
If you choose 4pcs/8PCS cameras,you will get:
X1 NVR
X4 or X8 Cameras
X2 or X4 30m Network cable
X2/X4 18m Network cable
X1 Power cable
X1 USB mouse
X1 User manual
X1 Network cable
X1 HDMI cable

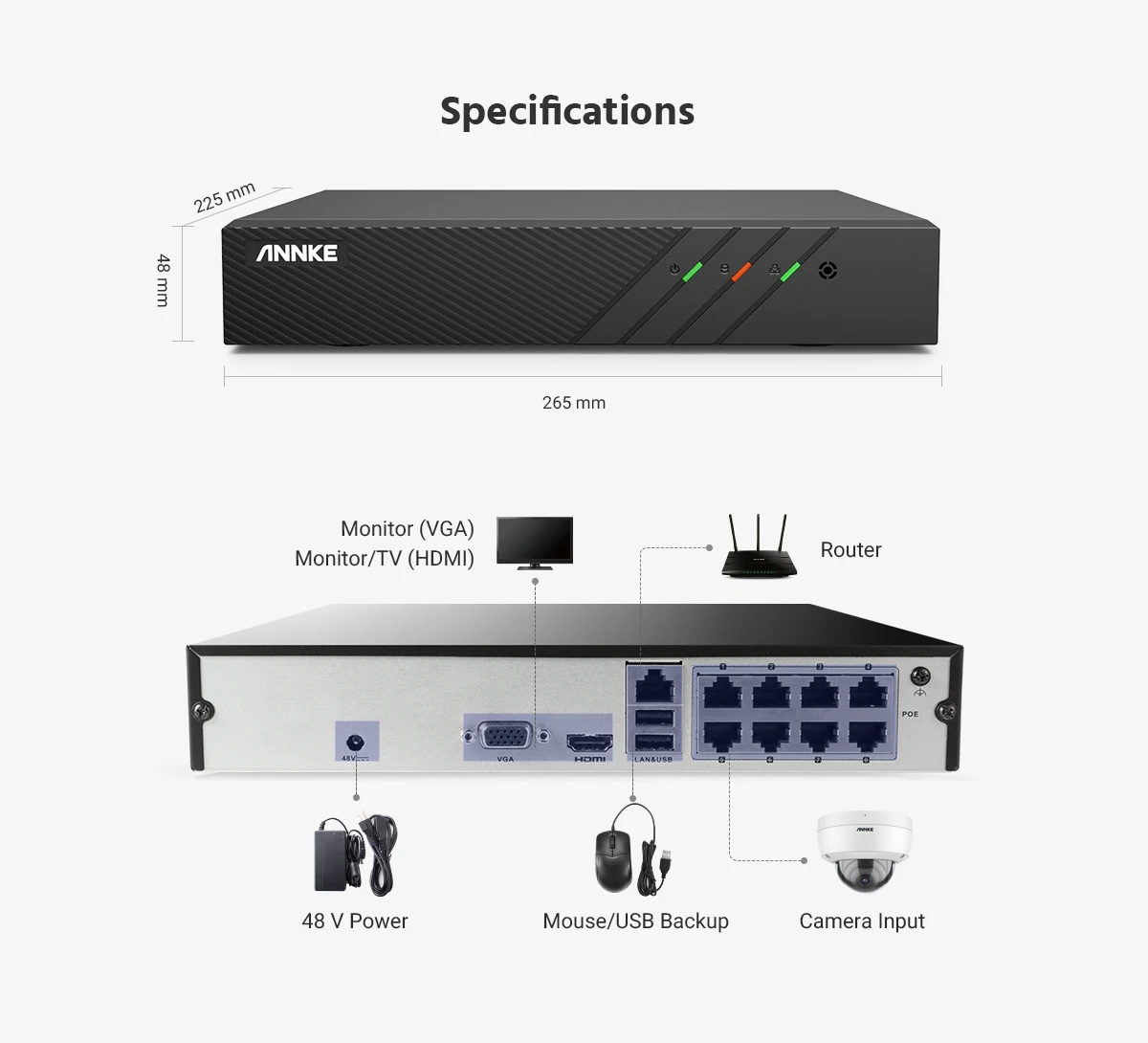

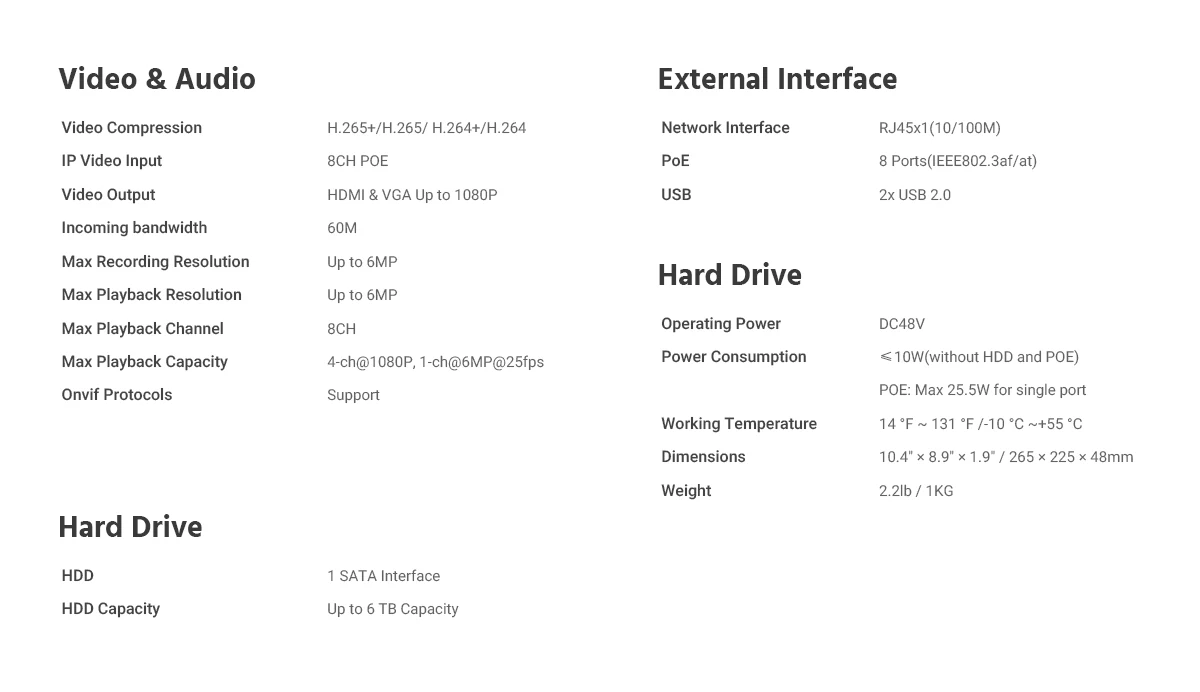

NVR Specification:
Video Compression:H.265+/H.265/ H.264+/H.264
IP Video Input:8CH POE
Video OutputHDMI & VGA :Up to 1080P
Incoming bandwidth:60M
Max Recording Resolution:Up to 6MP
Max Playback Resolution:Up to 6MP
Max Playback Channel:8CH
Max Playback Capacity:4-ch@1080P, 1-ch@6MP
HDD:1 SATA interface
HDD Capacity:Up to 6TB capacity
Network interface:RJ45x1(10/100M)
POE:8 Ports(IEEE802.3at/af)
USB:2x USB 2.0
Operating Power:DC48V
Power Consumption:≤10W(without HDD and POE)
POE: Max 25.5W for single port
Working Temperature:14 °F ~ 131 °F /-10 °C ~+55 °C
Dimensions(W x H x D):10.4" × 8.9" × 1.9" / 265 × 225 × 48mm
Weight (without hard disk):2.2lbs / 1KG
Camera Specification:
Image Sensor :1/3" Progressive Scan CMOS
Main Stream Max. Frame Rate: "50Hz: 20 fps (2592 × 1944), 25 fps (2560 × 1440, 2304 × 1296, 1920 × 1080, 1280 × 720)
60Hz: 20 fps (2592 × 1944), 30 fps (2560 × 1440, 2304 × 1296, 1920 × 1080, 1280 × 720)"
60Hz: 20 fps (2592 × 1944), 30 fps (2560 × 1440, 2304 × 1296, 1920 × 1080, 1280 × 720)"
Sub-stream Max. Frame Rate "50Hz: 25 fps (640 × 480, 640 × 360, 320 × 240)
60Hz: 30 fps (640 × 480, 640 × 360, 320 × 240)"
60Hz: 30 fps (640 × 480, 640 × 360, 320 × 240)"
Video compression:H.265+/H.265/H.264+/H.264
Video Bitrate: 32 Kbps – 8 Mbps
Audio Compression:G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC
Audio input:Bulit-in Microphone
Lens:2.8 mm
Min. Illumination:Color: 0.028 Lux @(F2.0, AGC On)
Angle of View:Horizontal FoV 71.5°, Vertical FoV 53°, Diagonal FoV 91°
Number of Infrared LEDs:2 pcs
Night Vision Distance:Up to 100 ft/30 m
DNR:3D DNR
Wide Dynamic Range:120DB WDR
IR Cut Filter:Yes
Ethernet: RJ45 X1 (10 M/100 M)
Housing:Metal & Plastic
Color:White
Storage: Built-in micro SD/SDHC/SDXC slot, up to 256 GB
Hardware Reset: Yes
Operating Power: DC 12 V; PoE (802.3af)
Operating Temperature: -22 °F – 140 °F/-30 °C – 60 °C
Indoor/Outdoor Use: Indoor/Outdoor
Interface Protection:IP67,IK10, TVS 2000V lightning protection, surge protection and voltage transient protection
Dimension (L X W X H): Ø120 × 92.2 mm (4.72" × 3.63")
Weight: 440 g (1.0 lb.)
