Outdoor Security Alarm Camera

Feature

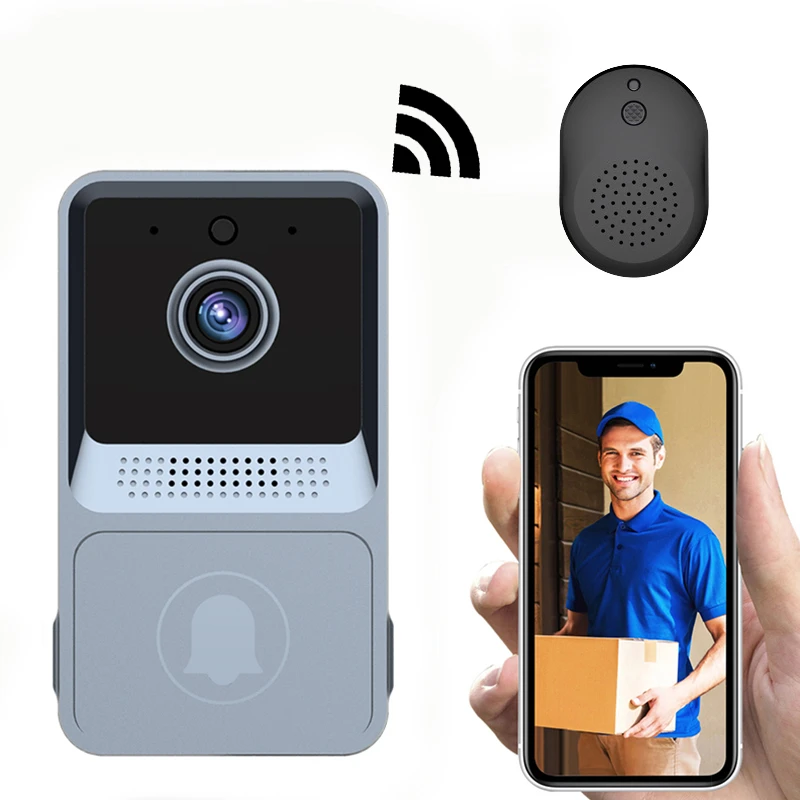

1: Wireless smart doorbell, visual intercom doorbell supports network remote viewing
2: 800mAh battery, standby for one year (normal daily use 3-6 months)

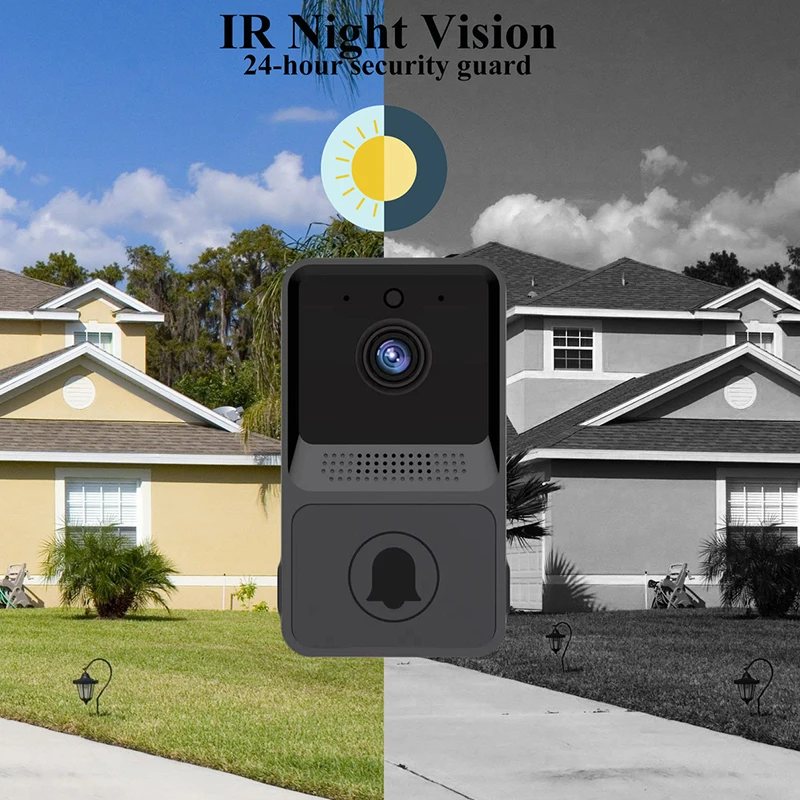

3: Night vision, 100° wide angle
4: Doorbell monitoring two-in-one, support online viewing, make your home safer

Applicable people: elderly living alone, girls living alone, people living alone
Applicable scene: door

Wake-up method: 1. The doorbell button wakes up,

APP access doorbell rules: 1 main account + 8 shared accounts = 9 users can connect to the doorbell, only 3 users can preview the screen at the same time, and only one user can talk to the doorbell at a time"

Uses: Guests can make video and voice calls and make short-term video recordings. The host can know the visitor's information without opening the door.

Features: wireless connection, ultra-low power consumption, can support multiple accounts to watch online at the same time

Package Contents*
Adhesive*1
Host*1
Dingdong machine*1
Screw*1
Line*1
Manual*1

1. Main control: XR872
2. Memory: 32Mb flash
3. Sensor: 30W GC0328 CMOS sensor
4. Lens: 100° wide-angle lens Sensor performance: support automatic white balance, automatic gain control, automatic backlight compensation
5. Signal-to-noise ratio: ≥41dB
6. Minimum illumination: 0.8Lux/F1.4 (color mode), 0.3Lux/F1.4 (black and white mode)
7. Night vision: 2pcs 850nmΦ28Mil high-power infrared lights Night vision distance: 1 meter is the best, the longest distance is 3 meters
8. Video format: JPG
9. Video size/frame rate: 480P/7fps
10. Recording method: 1. Press button to trigger recording;
11. Cloud Storage Diagram: 5 seconds (5 images)
12. Battery type/capacity: polymer 803035/800MAH battery discharge time: polymer battery sleep standby for 1 year
13. Network protocol: TCP/IP/HTTP/TCP/UDP/DHCP/DNS/DDNS/NTP/RTP/P2P/ WIFI connection: 2.4GHz wifi, support (802.11 b/g/n)
14. Ding Dong: Support RF 433MHZ Ding Dong
15. Storage: Support cloud storage function (without TF card function), 3 days free circulating cloud storage"
16. Working voltage: polymer 803035/3.7V
17. Working current: working current 219mA, deep sleep current 10mA, open infrared working current 280mA
18. USB charging voltage: DC 5V / 1.5A 19. Storage temperature (℃): (0℃～50℃)
20. Operating temperature (°C): -10～50°C, working humidity <95%
